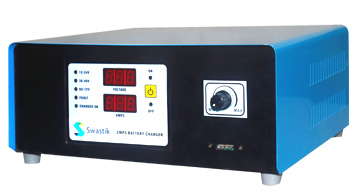

These type of battery chargers are very useful for Battery resellers. There no need of selection of switch for number of batteries connected. The charger measures the battery voltage, automatically selects its Voltage and starts charging the batteries.

Customer have to set the desired charging current by moving the knob on front panel of the charger. Both Voltage and Current displays are on front panel.

  • 7 Segment Digital display for Voltage and Current
  • Automatically selects battery Voltage
  • SMPS based with reliable Topology
  • Wide Input Voltage range
  • Light Weight
  • Higher Efficiency
  • Adjustable Current Setting
  • Low Ripple at Output

Type Intelligent Battery Charger
Model 12 - 72 V @ 10 Amps
Input AC Voltage range 190 V - 270 V AC
  Frequency 48 - 52 Hz
Battery Voltage 12 - 72 V
  Charging Current 0.5 - 10 Amps Seteable by Pot
  Type SMF / Automotive / Tubular
Charger Technology SMPS
  Switching Device Next Gen Power MOSFETs
Number of battery selection Automatic at Powe On and New batch Batt Voltag < 25 V : 12/24 V
    Batt Voltag < 45 V : 36/48 V
    Batt Voltag > 52V : 60/72 V
Display 3 Digit seven segment LED Battery Voltage
    Battery Charging Current
Indications LEDs Selected Range
    Charger On
    Fault ( Open circuit )
Protections Input Glass Fuse
  Output Electronic trip for output short circuit
  Battery reverse polarity Blade fuse
