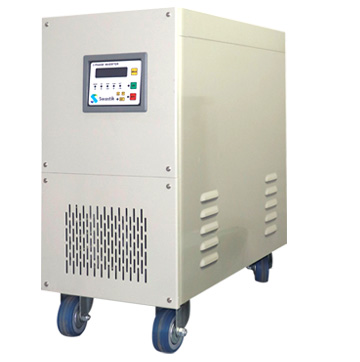

This UPS is very useful for small buildings, bungalows to run a elevator along with few lights in case of power outage for long time.
The output of this UPS is regulated pure sine wave three phase voltage using high power IGBT modules.

This inverter can run elevator motor installed with VFD along with few lights.
With LCD display you can read input, output voltage as well as output and battery charging current.

Programming is provided to select power transfer delay, battery type, battery charging current, inverter on warning.
It has unique software for charging the batteries so there is less maintenance required and the battery life is extended.

  • Pure Sine Wave Output
  • High Frequency PWM for Low Noise
  • Each Phase Voltage Correction
  • Capable of High Peak Load Currents
  • LCD Display to Read
    • Input, Output and Battery Voltage
    • Output and Battery Charging Current
  • Programmable Selection of
    • Inverter on Delay
    • Battery Type: Auto/ Tubular/ SMF
    • Battery Charging Current: 3-10 Amps
  • Fan as needed to avoid dust contamination
  • High Quality Relay and Connectors
  • Short Circuit Protection for IGBT
  • Over Temperature Protection

Model Balance Three Phase Inverters
Power - KVA 6 - 30 KVA
Battery Voltage 72 - 360 V
Charging Current 5 - 10 Amps
AC Output Main Above 160 V, same as input
AC Output Inverter 451 V + , 3 Phase- 4 wire, 50 Htz
Display LCD with LEDs for Mains, Inverter, Overload, Batt-low Charging
Protections Input under voltage, Overload, Short Circuit
Battery Type SMF, Automotive, Tubular
Lighting Load 10% of Capacity
Field Programming Battery Type, Charging current & Transfer delay
