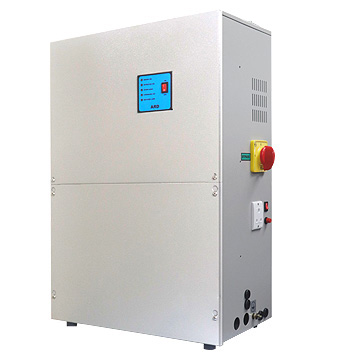

These ARDs are designed to match latest types of VFDs which operate from three phase power supply. With 4 to 10 SMF batteries it can perform rescue operation of a big elevator with 10 to 30 H.P. motor.
- IGBT/MOSFET base HF PWM 3 phase balance inverter with individual voltage correction.
- Mains fail sensing (any one out of three phases)
- Mechanically interlocked contactors for safe transfer of power.
- Manual bypass switch.
- Low ripple CVCC charger for long battery life using buck converter.
- Less than 1 mAmp current in shutdown mode to avoid battery over discharge.
- Field programmable delays.
- DZ signal for shutdown.
- NO, NC contacts for blocking mains between ARD operation.
- Auto shutdown if DZ signal is not available.
- 24V DC output for announceator (Optional).
- Vertical cabinet for MRL type controller
- LCD/LED display for ease of programming and status.
- Short circuit protection.
- Battery reverse polarity connection protection.
- Heavy duty din-rail mounting connectors.
| Model | Three Phase Out ARD | ||||
| Parameter | 2 KVA | 2.5 KVA | 3 KVA | 4 KVA | 6 KVA |
| Input Voltage | 415 V, +/- 10% 50 Hz 4 wire System | ||||
| Output Voltage | 415 V, 1 Ph 415 V, 3 Phase + 5% | ||||
| Waveform | Pure Sine Wave | ||||
| Output Power | 1600 Watt | 2000 Watt | 2400 Watt | 3200 Watt | 4800 Watt |
| Battery Voltage | 48 V | 48 V | 48 V | 72 V | 96 V |
| Charging Current | 2 Amp +/- 0.2 Amp | ||||
| Charging Voltage | 54 V | 54 V | 54 V | 81 V | 108 V |
| Power Failure signal | Internal Or External Selectable | ||||
| Inverter On After Power Failure | 5 Seconds (can be modified in software) | ||||
| DZ Input | From Potential Free Contact | ||||
| Inverter Off After DZ Input | 5 Seconds( can be modified in software) | ||||
| Power Resume During ARD Operation | Will wait till ARD overflow time-out (180 Sec) Or till DZ Input | ||||
| Extra Output | One NO/NC potential Free Contact | ||||
| Recommended Battery Size | 18 AH Or 26 AH 12 V SMF | ||||
| Mounting | Floor or Wall Mounting | ||||
