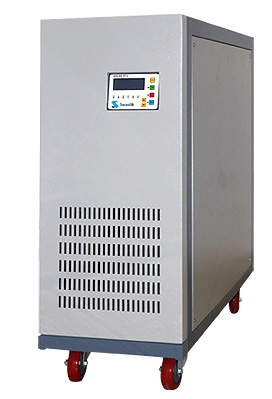

This UPS is very useful for banks, engineering workshops, hospitals, offices. It gives clean, regulated, Isolated power.
It can be used for short or long time backups in case of power failure.
The output of this UPS is regulated pure sine wave with low noise using high power IGBT modules.
This UPS can run desktop computers, printers, printing machines, CNC machines and elevators.
With LCD display you can read input, output voltage as well as output and battery charging current.
- Pure Sine Wave Output
- High Frequency PWM for Low Noise
- Can run 100% Unbalance load
- True Double Conversion
- Galvanic Isolation at Output using Transformer
- Capable of High Peak Load Currents
- Rugged SCR Charger
- LCD Display to Read
- Input, Output and Battery Voltage
- Output and Battery Charging Current
- High Quality Connectors
- Short Circuit Protection for IGBT
- Over Temperature Protection
- Manual Bypass Switch as Standard
| Type | Three Phase In Three Phase Out Unbalance Online UPS | |
| Model | 8 KVA - 100 KVA | |
| Input AC | Voltage range | 415 V +/- 5 % |
| Type | 3 Phase 4 Wires | |
| Frequency | 48 - 52 Hz | |
| PF | 0.8 - 0.9 | |
| Battery | Voltage | 180 V - 360V |
| Charging Current | 4 - 10 Amps | |
| Type | SMF / Tubular | |
| Boost Cut-off Voltage | 13.8 V for SMF Battery / 14.4 V for Tubular Battery | |
| Battery Low trip early warning | 10.8 Volts | |
| Battery low trip | 10 V | |
| Output | Waveform | Pure Sine wave |
| THD | 3 % for linear load / 5 % for Non linear load | |
| Crest Factor | 1:03 | |
| Frequency | 50 Hz +/- 0.5 Hz | |
| Voltage | 230 /240 V AC +/- 2 % phase to neutral / 400/ 415 V AC phase to phase | |
| Load Unbalance | 100% | |
| PF | 0.8 lagging | |
| Galvanic Isolation | With Isolation Transformer | |
| Inverter | Technology | Center Align HF PWM |
| Switching Device | IGBT Modules | |
| Galvanic Isolation | With Isolation Transformer | |
| Charger | Technology | 6 Pulse Converter |
| Switching Device | Thyristor Modules | |
| Protections | Input | MCB / MCCB |
| Output | Electronic trip for overload and short circuit | |
| Battery reverse polarity | Fuse link / HRC fuse | |
| Indications | LCD | Input, Output and Battery Voltage |
| Output and Battery Charging Current | ||
| LEDs | Mains OK, Inverter On, Overload, Charging On | |
| Battery Low, System On | ||
| Audio | Batter low trip early warning | |
| Overload trip early warning | ||
| Mains fail warning | ||
| Bypass Switch | Manual | Electro mechanical |
| Humidity | ||
