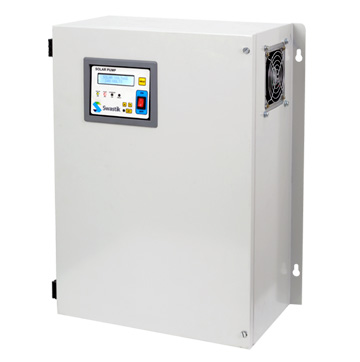

This Solar PCU is very useful for water pumps with three phase induction motor.
Solar Power is converted to three phase AC voltage.
Depending upon Solar Energy level the speed of motor is controlled.
With LCD display you can read Solar Voltage, Solar current, Motor Speed and Solar Power.
- In-built VFD
- MPPT algorithm to regulate the RPM
- Low Array Voltage to avoid shocks
- Can run Existing 3 Phase Pump Motor. No need to replace
- IP 20 Cabinet
| Type | Water Pump Controller Solar PCU | |
| Model | 2 HP - 10 HP | |
| Input AC | Solar PV arrey | Series and Parallel connection |
| Solar Panels Required | 1200 Wp per HPz | |
| Open circuit Voltage | 44 - 46 Volts DC | |
| No of Cells | 72 per panel | |
| String Open circuit Voltage | 450 V maximum | |
| Output | Waveform | Pure Sine wave |
| Voltage | 3 Phase, suitable for 3 phase induction motor | |
| DC to DC converter | Technology | Boost Converter |
| Switching Device | IGBT Module | |
| Indications | LCD | Solar Voltage, Solar Current |
| Solar Power | ||
| Pump Frequency | ||
| LEDs | Solar On, Inverter On, Fault | |
