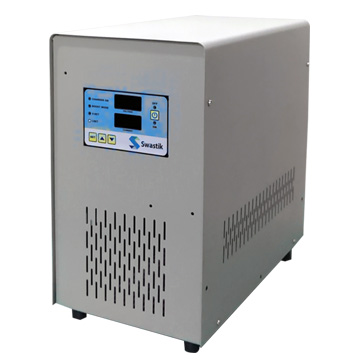

These type of battery chargers are very useful for charging battery of UPS and production line.
These battery chargers are designed to charge the batteries with current range from 10 Amps to 40 Amps.
These chargers normally powered by three phase power supply. Seven segment LED display is provided to read Voltage and Current.
Both Cutoff voltage and charging current is settable with help of Push buttons. The set value is stored in the memory of the charger.
- 7 Segment Digital display for Voltage and Current
- Adjustable Current and cut-off Voltage
- SMPS based Full Bridge Converter
- Wide Input Voltage range
- Inrush Current limit
- Over Temperature Protection
- Fan as needed to avoid dust contamination
- Higher Efficiency
| Type | High Power Battery Charger | |
| Model | 110 V @ 20 Amps | |
| Input AC | Voltage range | 190 V - 270 V AC |
| 415 V +/- 5 % | ||
| Frequency | 48 - 52 Hz | |
| Battery | Voltage | 110 V |
| Charging Current | 20 Amps max, Programmable | |
| Type | Automotive / Tubular | |
| Charger | Technology | SMPS |
| Switching Device | IGBT Modules | |
| Boost Cut-off Voltage | Programmeable | |
| Trickle Voltage | 124 V | |
| Display | 3 Digit seven segment LED | Battery Voltage |
| Battery Charging Current | ||
| Indications | LEDs | Charger On |
| Boost Mode On | ||
| Programming Mode | ||
| Protections | Input | MCB |
| Output | Electronic trip for output short circuit | |
| Battery reverse polarity | Blade fuse | |
