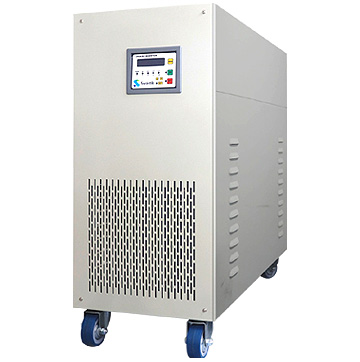

This UPS is very useful for offices, labs, hospitals, banks to run computers along with printers and few lights in case of power outage for long time.
The output of this UPS is regulated pure sine wave with low noise using high power IGBT modules.
This UPS can run Desktop computers, dot matrix printers, laser printers, printing machines and machines used in laboratories.
With LCD display you can read input, output voltage as well as output and battery charging current.
Programming is provided to select power battery type, battery charging current and inverter on warning.
- Pure Sine Wave Output
- High Frequency PWM for Low Noise
- True Double Conversion
- Galvanic Isolation at Output using Transformer
- LCD Display to Read
- Input, Output and Battery Voltage
- Output and Battery Charging Current
- Capable of High Peak Load Currents
- Rugged SCR Charger
- High Quality Connectors
- Short Circuit Protection for IGBT
- Can Charge Big Tubular Batteries
- Manual Bypass Switch as Standard
| Type | Three Phase In One Phase Out Online UPS | |
| Model | 6 KVA - 25 KVA | |
| Input AC | Voltage range | 415 V +/- 5 % |
| Type | 3 Phase 4 Wires | |
| Frequency | 48 - 52 Hz | |
| PF | 0.8 - 0.9 | |
| Battery | Voltage | 144 V - 360V |
| Charging Current | 4 - 10 Amps | |
| Type | SMF / Tubular | |
| Boost Cut-off Voltage | 13.8 V for SMF Battery / 14.4 V for Tubular Battery | |
| Battery Low ea trip early warning | 10.8 Volts | |
| Battery low trip | 10 V | |
| Output | Waveform | Pure Sine wave |
| THD | 3 % for linear load / 5 % for Non linear load | |
| Crest Factor | 1:03 | |
| Frequency | 50 Hz +/- 0.5 Hz | |
| Voltage | 230 V AC +/- 2% | |
| PF | 0.8 lagging | |
| Galvanic Isolation | With Isolation Transformer | |
| Inverter | Technology | Center Align HF PWM |
| Switching Device | IGBT Modules | |
| Galvanic Isolation | With Isolation Transformer | |
| Charger | Technology | Phase Control |
| Switching Device | Thyristor Modules | |
| Protections | Input | MCB |
| Output | Electronic trip for overload and short circuit | |
| Battery reverse polarity | Fuse link / HRC fuse | |
| Indications | LCD | Input, Output and Battery Voltage |
| Output and Battery Charging Current | ||
| LEDs | Mains OK, Inverter On, Overload, Charging On | |
| Battery Low, System On | ||
| Audio | Batter low trip early warning | |
| Overload trip early warning | ||
| Mains fail warning | ||
| Bypass Switch | Manual | Electro mechanical |
| Humidity | ||
