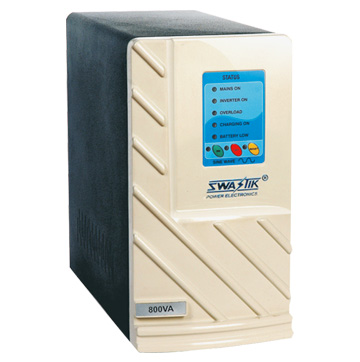

This UPS is very useful for home, small offices, shops etc to run lights, fan and PC, in case of power outage for long time.
It have regulated pure sine wave output, so there is no noise in fan in the inverter mode.
This UPS can run PCs without any interruption as well as few lights, fans, TV, music system, cooler, washing machines etc.
You can use Automotive or Tubular battery with this UPS.
It has unique Software for charging the batteries so there is less maintenance required and the battery life is extended.
- Pure Sine Wave Output
- High Frequency PWM for Low Noise
- UPS and Inverter Mode
- Auto/ Tubular Battery Selection
- Charging current Hi/ Low Selection
- Fan as needed to avoid dust contamination
- High Quality Relay and Connectors
- Copper Transformer
- Long Life Double Side Glass Epoxy PCB
- Through hole components for easy repair
- Feather touch switches
- BIS Certified
| Type | Sine Wave Home UPS | |
| Model | 900 VA , 1600 VA & 2000 VA | |
| Input AC | Voltage range | 170 V - 270 V AC/ 120 - 290 V AC |
| Frequency | 48 - 52 Hz | |
| Battery | Voltage | 12 V DC / 24 V DC |
| Charging Current | 5 & 8 Amps | |
| Type | Automotive / Tubular | |
| Boost Cut-off Voltage | 14.0 V for Automotive Battery / 14.4 V for Tubular Battery | |
| Battery Low eary trip warning | 10.8 Volts | |
| Battery low trip | 10 V | |
| Output | Waveform | Pure Sine wave |
| Frequency | 50 Hz +/- 0.5 Hz | |
| Voltage | 230 V AC +/- 3% | |
| PF | 0.8 lagging | |
| Inverter | Technology | Full Bridge with HF PWM |
| Switching Device | Power MOSFETs | |
| Charger | Technology | Boost Converter |
| Switching Device | Power MOSFETs | |
| Protections | Input | Glass Fuse |
| Output | Electronic trip for overload and short circuit | |
| Battery reverse polarity | Fuse link | |
| Indications | LEDs | Mains OK, Inverter On, Overload, Charging On |
| Battery Low, System On, System Off | ||
| Audio | Batter low trip early warning | |
| Overload trip early warning | ||
