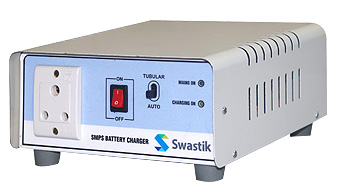

These type of battery chargers are very useful for charging battery bank with fixed number of batteries. It is used to charge battery of a generator, UPS battery bank etc.
Once batteries are charged the charger reduces the Charging voltage and current.
- SMPS based with reliable Topology
- Wide Input Voltage range
- Light Weight
- Higher Efficiency
- Low Ripple at Output
| Type | Fixed Voltage Battery Charger | |
| Model | 12 & 24 V @ 7/5 Amps | |
| Input AC | Voltage range | 190 V - 270 V AC |
| Frequency | 48 - 52 Hz | |
| Battery | Voltage | 12 or 24 V |
| Charging Current | 7 Amps +/- 0.5 for 12 V Charger / 5 Amps +/- 0.5 for 24 V Charger | |
| Type | Automotive / Tubular by select Switch | |
| Charger | Technology | SMPS |
| Switching Device | Power MOSFETs | |
| Boost Cut-off Voltage | 14.0 V for Automotive Battery / 14.4 V for Tubular Battery | |
| Trickle Voltage | 13.5 V for 12 V Charger / 27.0 V for 24 V Charger | |
| Indications | LEDs | Mains On |
| Boost Mode On | ||
| Protections | Input | Glass Fuse |
| Output | Electronic trip for output short circuit | |
| Battery reverse polarity | Blade fuse | |
