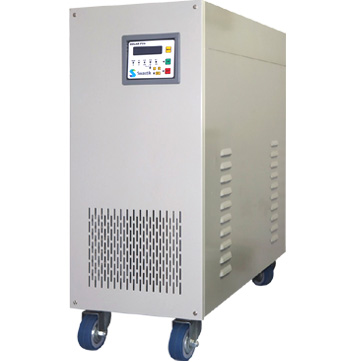

This Solar PCU is very useful for elevators where there is frequent power failures.
The Solar energy is used to run elevator motor and few lights as well as to charge the batteries for storage of power.
Stored power can be used for short or long time backups in case of power failure. With LCD display you can read input/output/Solar voltage, output/battery/Solar current and Solar Power.
Programming is provided to select Power source priority, Battery charging event, Battery type, Battery charging current, Grid charging level, low load shutdown etc.
- Pure Sine Wave Output
- High Frequency PWM for Low Noise
- MPPT Charge Controller
- Static Transfer Switch for Transfer of Power
- Capable of Delivering High Peak Load Currents
- LCD Display to Read
- Input, Output, Battery & Solar Voltage
- Output, Battery Charging & Solar Current
- Solar Power
- Programmable Selection of
- Power Source Priority
- Battery Charging level low
- Battery Type: Auto/Tubular
- Low Load Shutdown Enable/ disable
- Grid charging Current High/ low
- Solar Charging Current: 5-25 Amps
- High Quality Connectors
- Short Circuit Protection for IGBT
- Over Temperature Protection
| Type | Three Phase Balance Solar PCU | |
| Model | 8 KVA - 30 KVA | |
| Input AC | Voltage range | 415 V AC +/- 5 % |
| Type | 3 phase 4 wires | |
| Frequency | 48 - 52 Hz | |
| Battery | Voltage | 120V- 240 V DC |
| Charging Current | 5 & 8 Amps by Grid Power / 5 - 25 Amps by Solar power | |
| Type | Automotive / Tubular | |
| Boost Cut-off Voltage | 14 V + offset for Automotive Battery / 14.4 V + offset for Tubular Battery | |
| Battery Low trip early warning | 10.8 Volts | |
| Battery low trip | 10 V | |
| Output | Waveform | Pure Sine wave |
| THD | 3 % for linear load / 5 % for Non linear load | |
| Crest Factor | 1:03 | |
| Frequency | 50 Hz +/- 0.5 Hz | |
| Voltage | 415V AC +/- 2 % 3 phase | |
| PF | 0.8 lagging | |
| Load Imbalance | 25 % maximum | |
| Inverter | Technology | Center Align HF PWM |
| Switching Device | IGBT Modules | |
| Static Transfer Switch | Device | Back to back connected Thyristors |
| MPPT Solar Charger | Technology | Buck Converter |
| Switching Device | IGBT Module | |
| Charging Current | 5 - 25 Amps | |
| Solar Panels Required | One panel for Two batteries | |
| Open circuit Voltage | 44 - 46 Volts DC | |
| No of Cells | 72 per panel | |
| Grid Powered Charger | Technology | Boost Converter |
| Switching Device | IGBT Module | |
| Inverter on logic | Battery Condition helthy or mains fail | Above 13 V or Till 11.5 V / 11V DC |
| Protections | Input | MCB |
| Output | Electronic trip for overload and short circuit | |
| Battery reverse polarity | Fuse link | |
| Solar in polarity reversal | Power Diode in Series | |
| Indications | LCD | Input, Output and Battery Voltage |
| Output, Battery Charging & Solar Current | ||
| Solar Power | ||
| LEDs | Mains OK, Inverter On, Overload, Charging On | |
| Battery Low, System On, System On & Off | ||
| Audio | Batter low trip early warning | |
| Overload trip early warning | ||
| Mains fail warning | ||
| Setting | Field Programmable | Input AC window selection |
| Battery Type selection | ||
| Battery Charging Current by Grid Power | ||
| Battery Charging Current by Solar Power | ||
| Power Source Priority selection | ||
| Battery Charging By Grid power level selection | ||
| Low load shutdown enable / disable | ||
