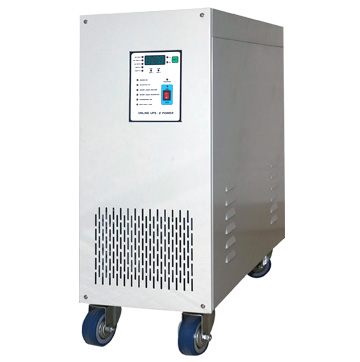

These ARDs are designed for high speed elevators which do not have reduction gear box. With minimum 12 nos SMF batteries it can perform rescue operation of elevator having speed upto 5 meter per second without any interrupt.
- No Interruption in Elevator travel
- No need of 50 Hz ONLINE UPS
- Less no. of Batteries
- Small Size
- Higher Efficiency
- Parallel Operation
- Offline output for lighting load
- DZ input for shutdown
- NO/NC contacts
- Suitable for Regenerative VFDs
| Model | OARD-5 | OARD-8 | OARD-10 | OARD-15 | OARD-20 | OARD-25 |
| Motor Hp | 5 | 7.5 | 10 | 15 | 20 | 25 |
| Battery Voltage | 144 V | 144 V | 144 V | 180 V | 192 V | 240 V |
| Charging Current | 5 Amps + 10% | |||||
| DC Output Voltage | 500 V + 2% | |||||
| AC Output Online | 230 V / 50 Hz + 2% Pure Sinewave 1 KVA | |||||
| AC Output Offline | 230 V / 50 Hz + 5% Pure Sinewave 0.5 KVA | |||||
| Display | LEDs for Main On, Inverter On, Overload Charging On, Battery Low, S/M ON, F/B IN | |||||
| Protections | O/p Overload, Circuit, Battery Under - Voltage, Trip, Battery Reverse Connection | |||||
| F/B Inputs | 2 Inputs from potential - free Contacts | |||||
| Logic Output | Potential - free Output NO/NC | |||||
