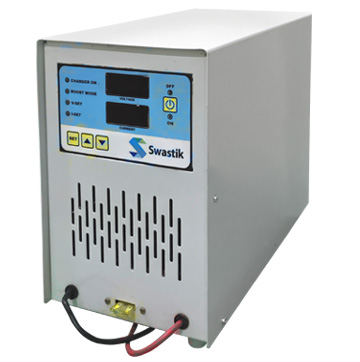

These type of battery chargers are very useful for charging battery bank of fork lift and battery operated electric vehicles.
These battery chargers are designed to charge the batteries with current range from 10 Amps to 40 Amps.
Seven segment LED display is provided to read Voltage and Current.
Both Cutoff voltage and charging current is settable with help of Push buttons.
The set value is stored in the memory of the charger.
- 7 Segment Digital display for Voltage and Current
- Adjustable Current and cut-off Voltage
- SMPS based Full Bridge Converter
- Wide Input Voltage range
- Inrush Current limit
- Over Temperature Protection
- Fan as needed to avoid dust contamination
- Higher Efficiency
| Type | Fork Lift Battery Charger | |
| Model | 36 & 48 V | |
| Input AC | Voltage range | 190 V - 270 V AC |
| Frequency | 48 - 52 Hz | |
| Battery | Voltage | 36 or 48 V |
| Charging Current | 30 Amps max for 36 V Charger / 25 Amps max for 48 V Charger | |
| Type | Automotive / Tubular | |
| Charger | Technology | SMPS |
| Switching Device | Power MOSFETs | |
| Boost Cut-off Voltage | Programmeable | |
| Trickle Voltage | 40.5 V for 36 VCharger / 54.0 V for 48V Charger | |
| Display | 3 Digit seven segment LED | Battery Voltage |
| Battery Charging Current | ||
| Indications | LEDs | Charger On |
| Boost Mode On | ||
| Programming Mode | ||
| Protections | Input | MCB |
| Output | Electronic trip for output short circuit | |
| Battery reverse polarity | Blade fuse | |
