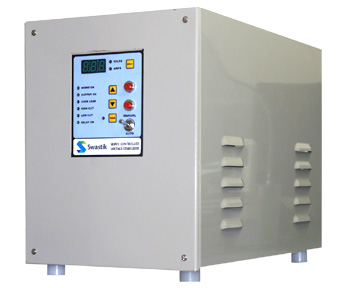

This type of voltage stabilizer is designed for 230V operated equipments, where Voltage fluctuations effects the performance and product life is affected. Typical applications are medical equipments, Xerox copier machines, CNC machines, Printing machines, etc.
- High End Microcontroller Controlled
- Field Programmable Settings
- Over Voltage, Under Voltage, Over Current trip
- SMPS Power Supply for Circuits
- Hardware high cut-off
- Overload warning before trip
- Seven segment LED display for better visibility
- High quality MCB, Relays and Contactors
| Type | Single Phase Servo Controlled Voltage Stabilizers | |
| Model | 2 KVA - 15 KVA | |
| Input AC | Voltage range | 170 V - 270 V AC/ 140 - 290 V AC |
| Frequency | 48 - 52 Hz | |
| Output | Voltage | 230 V AC +/- 1% Adjustable between 200 V - 240 V |
| Waveform Distortion | Nil | |
| Sensitivity | 3 V to 8 V AC | |
| Correction Response time | 20 m SECOND | |
| Frequency | Same as Input | |
| Rate of correction | 40 V per Second | |
| Effect of load PF | Nil | |
| General | Control | High end Microcontroller |
| Efficiency | Better than 98% | |
| Duty Cycle | 100% contineous, 150% for 5 seconds | |
| Earthing | Earthing Terminal provided | |
| Output On Delay | 5 - 200 Seconds Adjustable | |
| Auto / Manual control | switches provided | |
| Output High / Low cut off | Provided | |
| Insulation | Class F | |
| Operating temperature | 5 - 50 Degree Celcious | |
| Protections | Input | MCB |
| Output | Electronic trip for overload with early warning | |
| Indications | 7 segment LED | Input, & Output Voltage |
| Output Current | ||
| LEDs | Mains OK, Output On, Overload, Delay On | |
| Low cut off, High Cut off | ||
| Audio | Overload trip early warning at 90% load | |
| Setting | Field Programmable | Mains On Delay : 5 - 200 Seconds |
| Output Voltage : 200 - 240 Volts | ||
| Low cut off Voltage : 180 - 200 Volts | ||
| High cut-off Voltage : 250 - 265 Volts | ||
| Output Sensitivity : 3 - 8 Volts | ||
