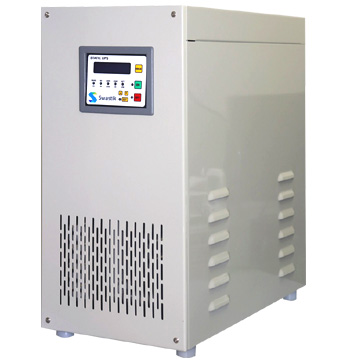

This UPS is very useful for offices, hospitals, cyber cafes, shops etc to run lights, fan and PCs, in case of power outage for long time.
The output of this UPS is regulated pure sine wave using high power IGBT modules.
This UPS can run PCs without any interruption as well as few lights, fans, air conditioners, printing machines, cooler, photo copier machines, wheel balancing machines etc.
With LCD display you can read input, output voltage as well as output and battery charging current.
Programming is provided to select AC voltage range, battery type, battery charging current, inverter on warning.
It has unique software for charging the batteries so there is less maintenance required and the battery life is extended.
- Pure Sine Wave Output
- High Frequency PWM for Low Noise
- Static Switch for Synchronous transfer of Power
- LCD Display to Read
- Input, Output and Battery Voltage
- Output and Battery Charging Current
- IGBT Modules used
- Short Circuit Protection for IGBT
- Programmable Selection of
- Input AC range
- Battery Type: Auto/Tubular/SMF
- Battery Charging Current: 3-10 Amps
- Power failure Warning: Enable/Disable
- Fan as needed to avoid dust contamination
- High Quality Relay and Connectors
- Over Temperature Protection
| Type | IGBT Based Static UPS | |
| Model | 5.5KVA - 12 KVA | |
| Input AC | Voltage range | 170 V - 270 V AC/ 120 - 290 V AC |
| Frequency | 48 - 52 Hz | |
| Battery | Voltage | 72V - 180 V DC |
| Charging Current | 4 - 10 Amps | |
| Type | Automotive / SMF / Tubular | |
| Boost Cut-off Voltage | 13.8 V for SMF Battery / 14.0 V for Automotive Battery / 14.4 V for Tubular Battery | |
| Battery Low trip early warning | 10.8 Volts | |
| Battery low trip | 10 V | |
| Output | Waveform | Pure Sine wave |
| THD | 3 % for linear load / 5 % for Non linear load | |
| Crest Factor | 1:03 | |
| Frequency | 50 Hz +/- 0.5 Hz | |
| Voltage | 230 V AC +/- 2% | |
| PF | 0.8 lagging | |
| Inverter | Technology | Full Bridge with HF PWM |
| Switching Device | IGBT Modules | |
| Charger | Technology | Boost Converter |
| Switching Device | IGBT Modules | |
| Static Transfer Switch | Device | Back to back connected Thyristors |
| Protections | Input | MCB |
| Output | Electronic trip for overload and short circuit | |
| Battery reverse polarity | Fuse link | |
| Indications | LCD | Input, Output and Battery Voltage |
| Output and Battery Charging Current | ||
| LEDs | Mains OK, Inverter On, Overload, Charging On | |
| Battery Low, System On | ||
| Audio | Batter low trip early warning | |
| Overload trip early warning | ||
| Mains fail warning | ||
| Setting | Field Programmable | Input AC window selection |
| Battery Type selection | ||
| Battery Charging current selection | ||
| Power failure warning enable/disable | ||
